Solution spotlight

MG DataSentinel. Pitch data, made actionable.

PIAI gathers length-wise process data every 5 metres for coils on processing lines, identifies anomalies based on configurable rules, and alerts your team through SMS, Email or Telegram — built for CRM, PL, CGL and SPM.

Request a demo See all products
Module 01
Data Integration & Dashboarding
Unified Data Platform
icon
Data Integration & Dashboarding

Unified Data Platform

Data gathering is essential for analyzing and interpreting production performance. Our platform stores time-series and relational data and visualizes it against production tracking, enabling AI/ML programs and benchmark monitoring with configurable alerts.

  • Time-series + relational data store
  • Visualization tied to production tracking
  • Benchmark-based monitoring
  • Operator-set alerts and warnings
  • Long-duration retention
  • User-configurable views
  • Standard widgets out of the box
  • Custom widgets on request
Module 02
Historian
InfluxDB Time-Series Backbone
icon
Historian

InfluxDB Time-Series Backbone

Time series data is stored in InfluxDB, optimized for high-frequency data over long durations. Collect from PLCs via OPC UA/DA and TCP/IP. IBA PDA data can be imported or streamed via the IBA Data Extractor or IBA Retransmitted TCP/IP option.

  • InfluxDB time-series storage
  • OPC UA / DA collection
  • TCP/IP protocol support
  • IBA PDA Data Extractor
  • IBA Retransmitted TCP/IP streaming
  • Product-wise & length-wise insight
  • Anomaly detection & benchmarking
  • Alerts via SMS / Email / Telegram
Module 03
MG DataSentinel
Pitch Data & Anomaly Identification (PIAI)
icon
MG DataSentinel

Pitch Data & Anomaly Identification (PIAI)

PIAI is for processing lines — gathering pitch data (length-wise, every 5 m) for coils being processed. Communicates with the lower-level PLC via OPC UA/DA and identifies anomalies based on configurable rules. License covers up to 200 signals.

  • Coil Tracking

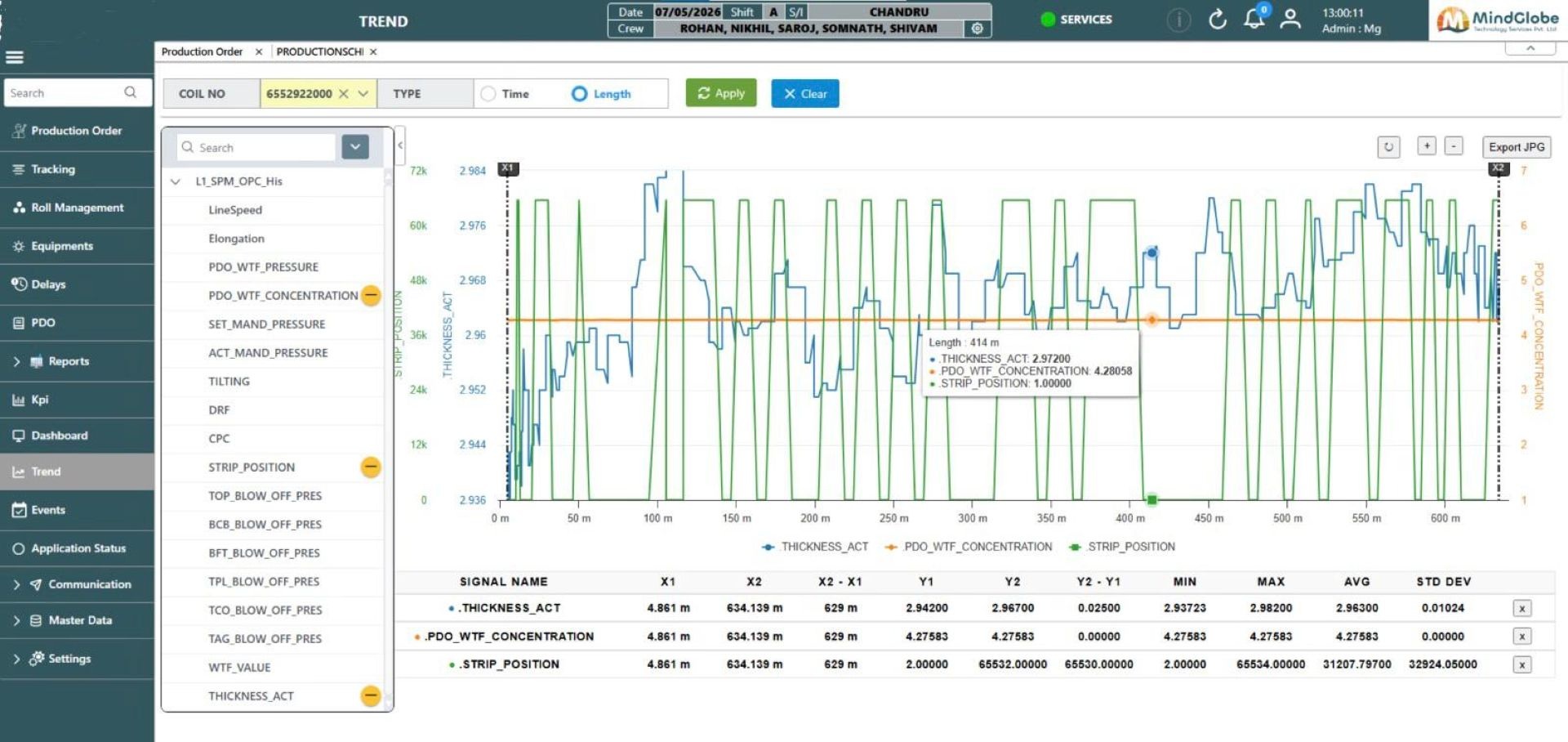

  • Trends (time-wise / length-wise)
  • Alerts / Anomaly identification
  • Coil PDO / Reports (Excel export)
  • Dashboard & line overview
  • Events / Logs (last 30 days)
  • OPC UA / DA / TCP/IP / VIP interfaces
  • Master Data Management
  • Settings, User & Role management
  • Up to 200 signals per license
Module 04
Software Development
Custom Software Solutions
C#.Net
.Net Core
Angular
Flutter / Android / iOS Development
Software Development

Custom Software Solutions

Custom software development services to create tailored applications that meet your specific business needs.

  • C#.Net
  • .Net Core
  • Angular
  • Flutter / Android / iOS Development
What's inside

Operational picture.

Every module ships in V1.0. Configure rules, signals and roles entirely from the UI.

icon

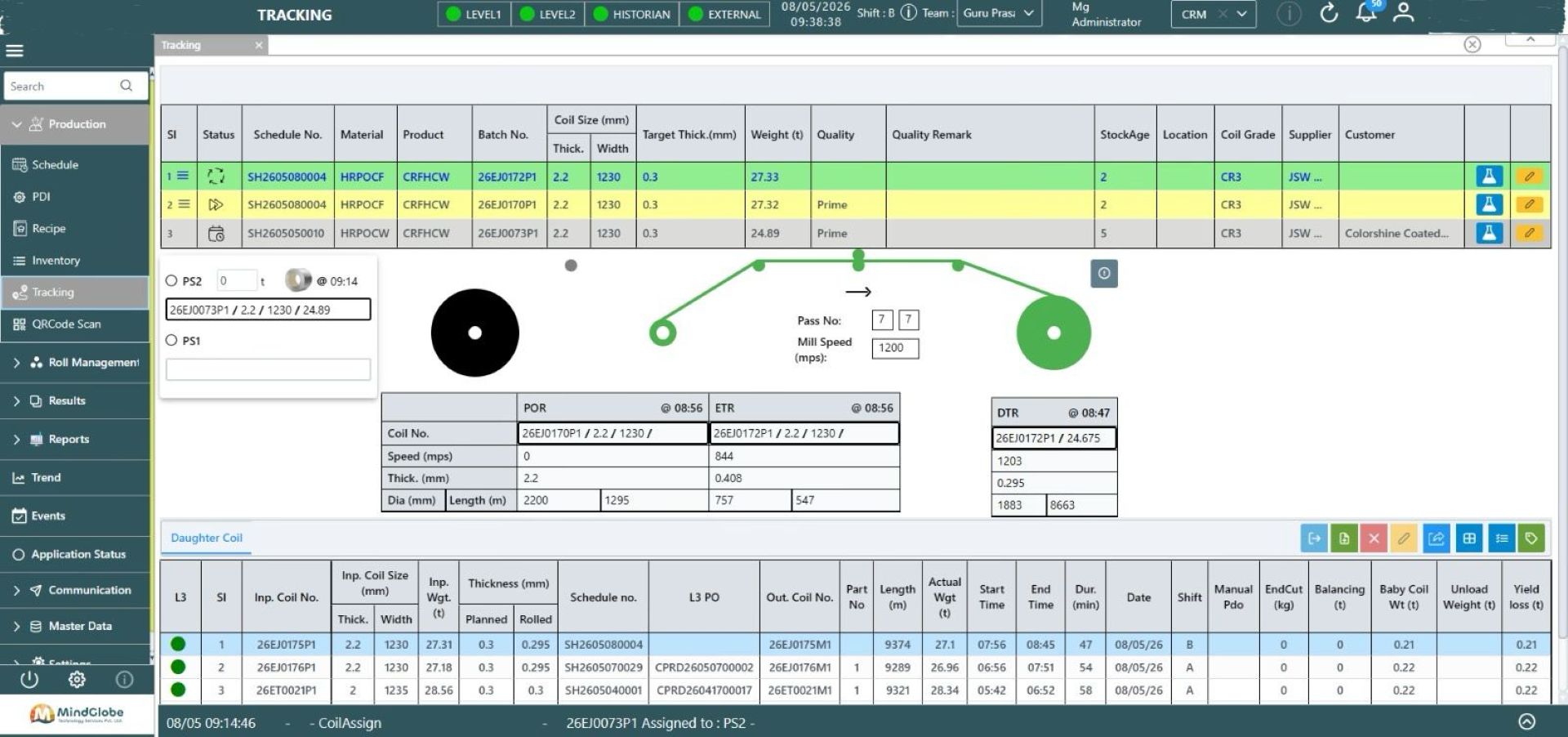

CRM Tracking

icon

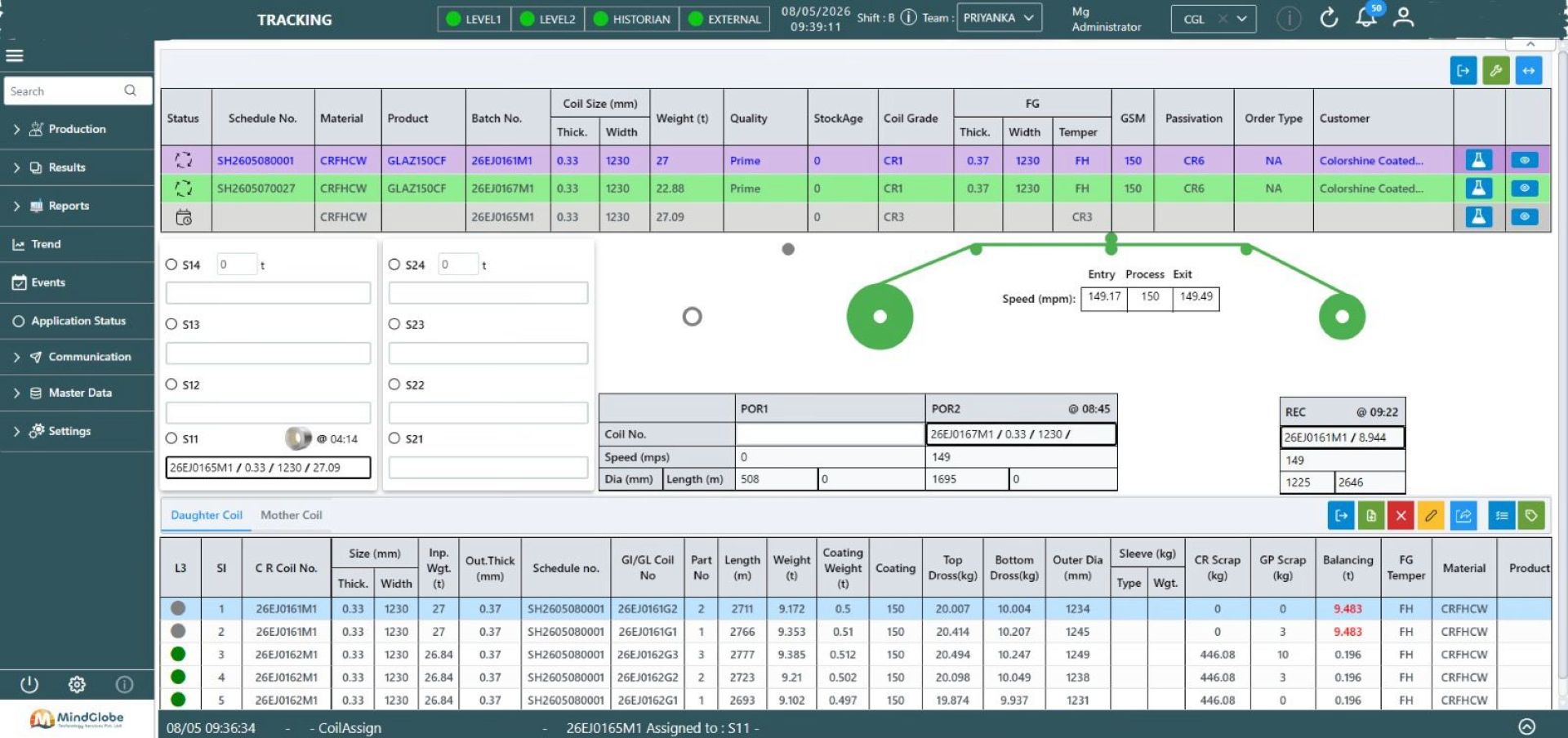

CGL Tracking

icon

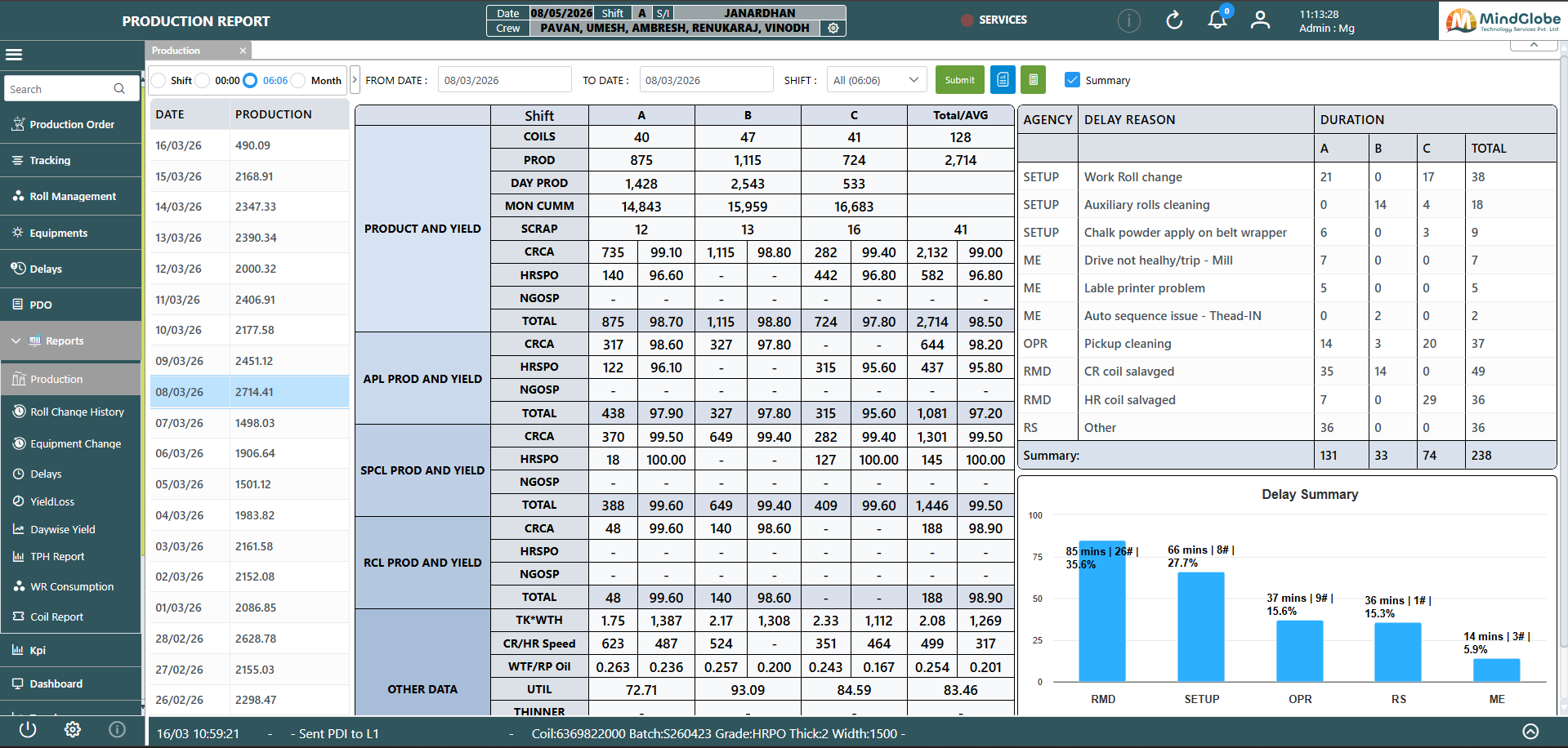

Production Report

icon

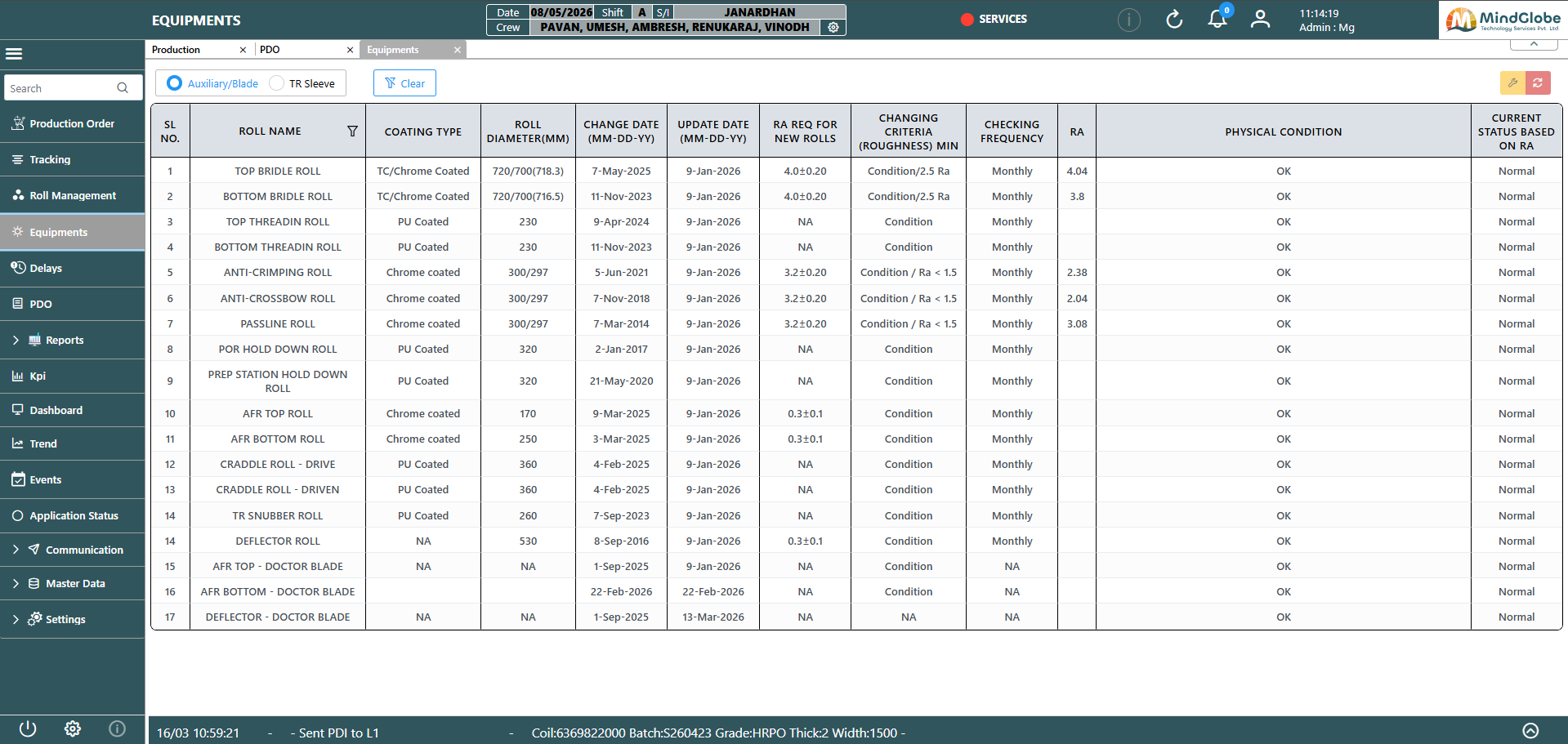

Equipments

icon

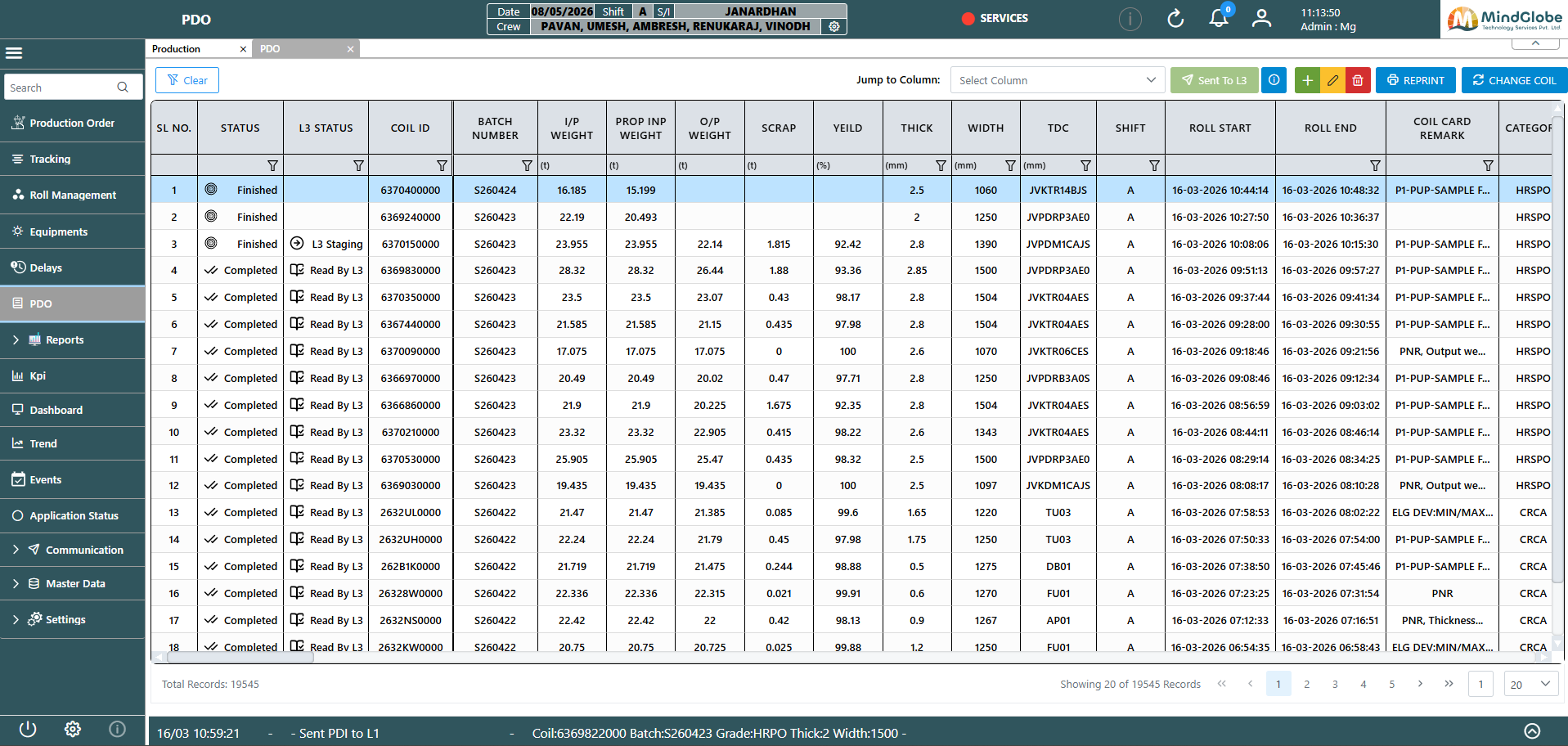

PDO

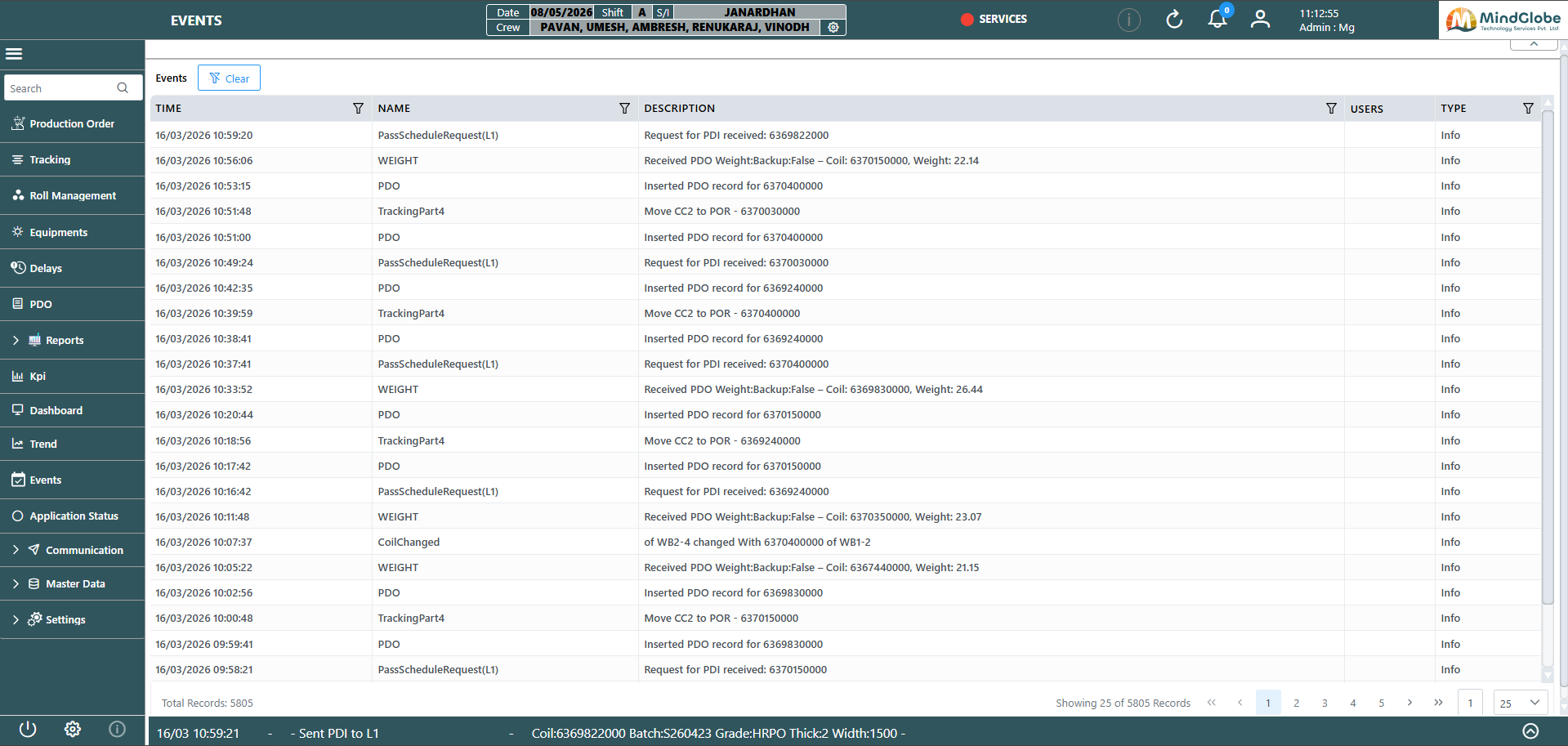

Events

DataSentinel dashboard
Dashboard

Monitor production at a glance.

Visualize parent and daughter coils currently in the line, surface existing anomalies, and drill into selected parameter trends — all from a single screen.

5 m
Pitch resolution
200
Signals per license
30 d
Event retention
Discuss your line
